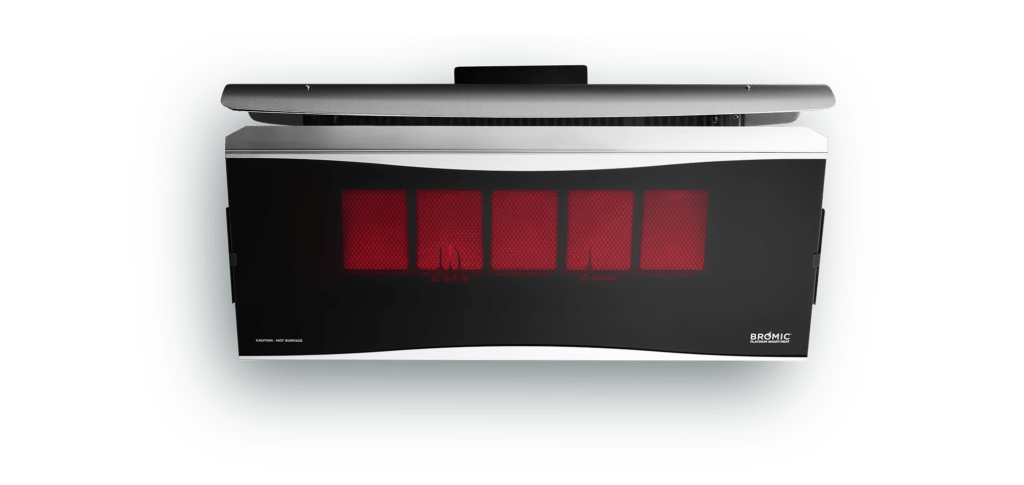

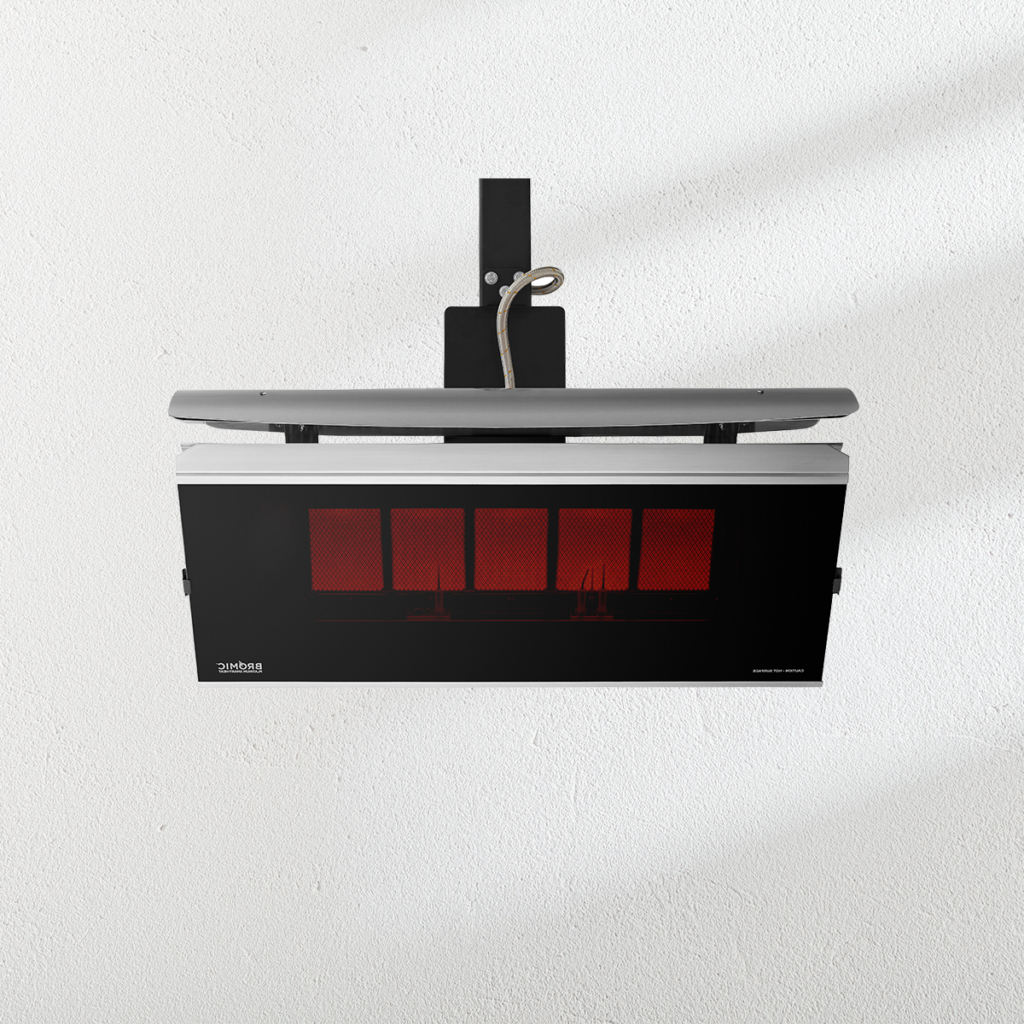

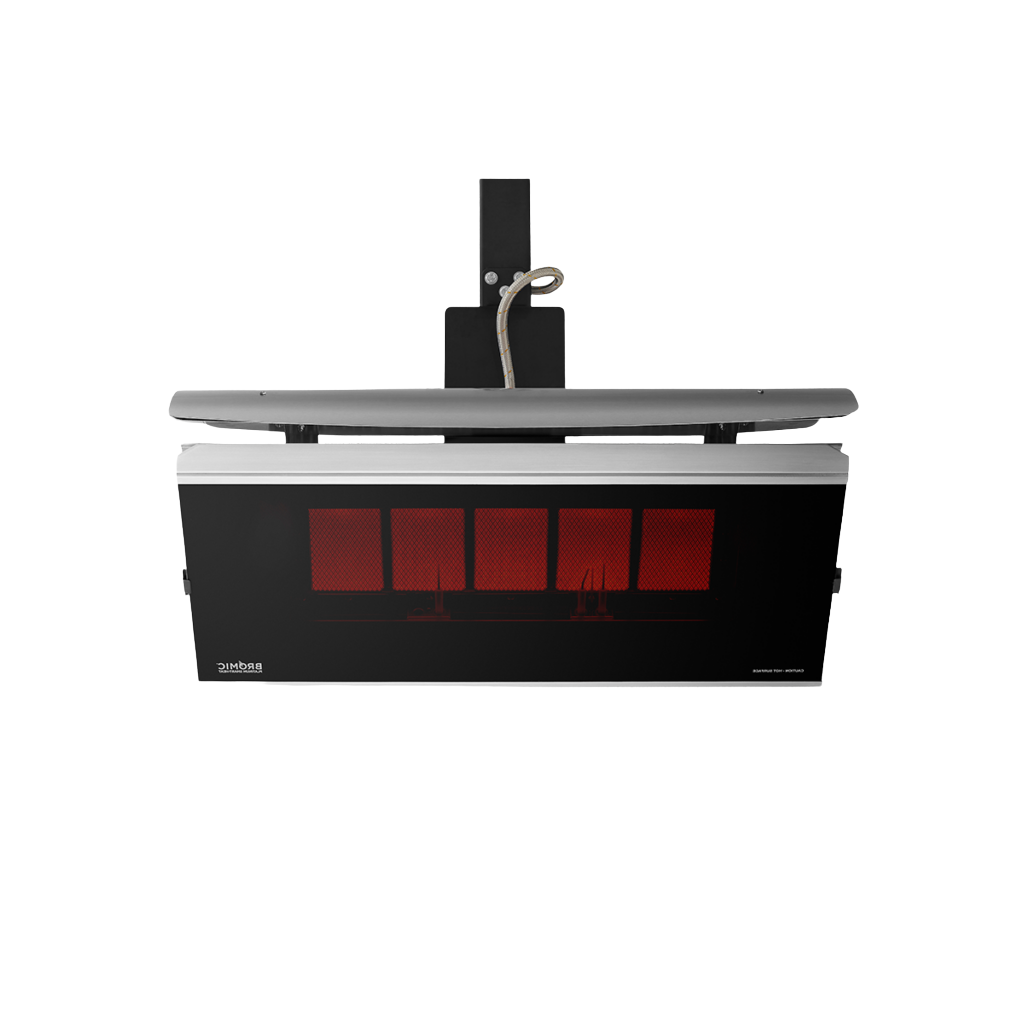

Platinum Smart-Heat Gas Heater

2620130-1

Type

Print Spec Sheet

Features a signature ceramic fascia that provides efficient and even heat distribution across a large area with a soft, comforting, red glow.

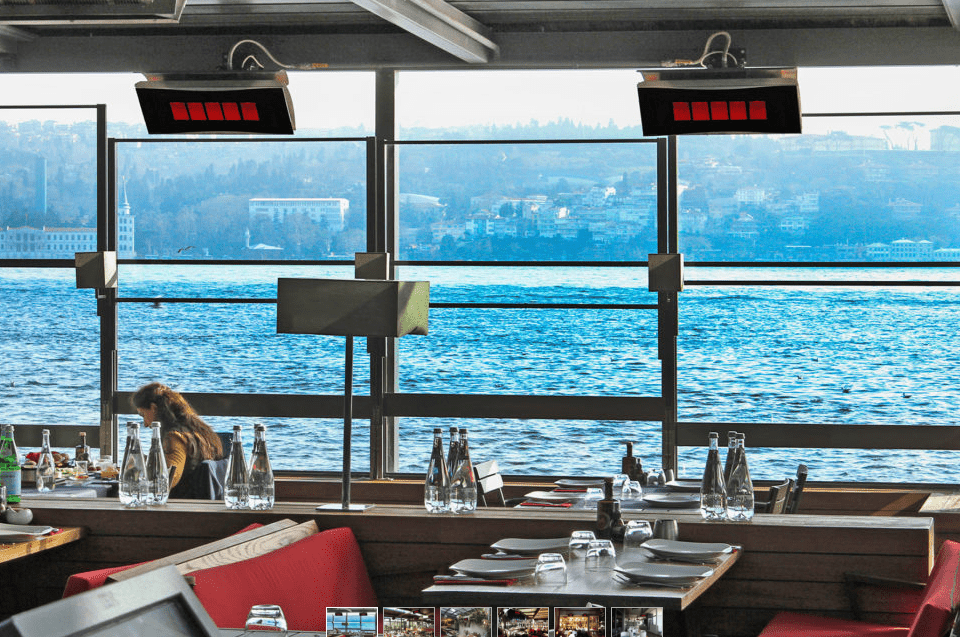

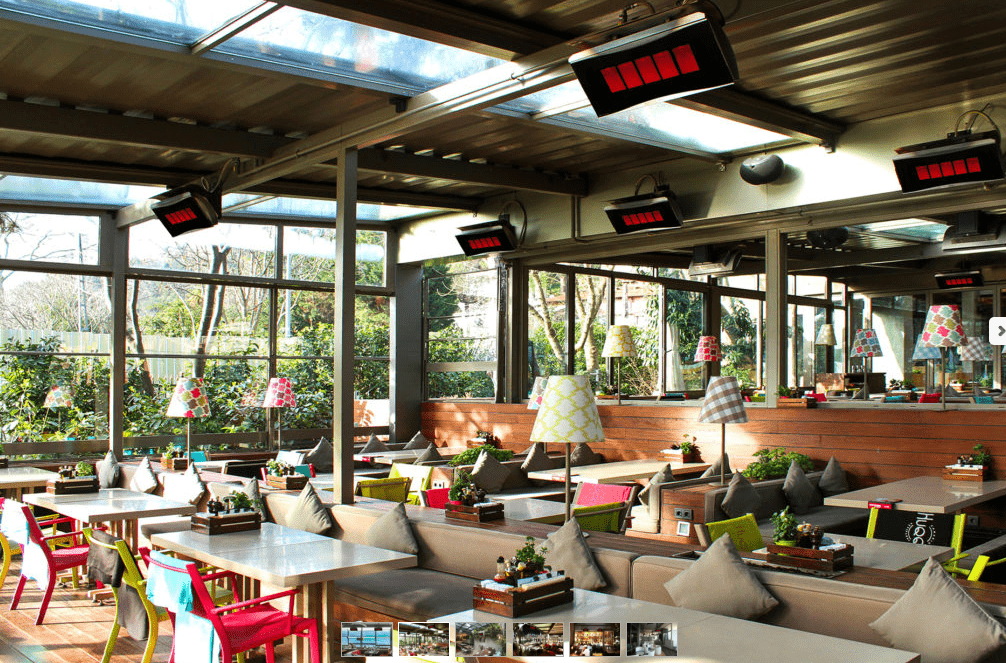

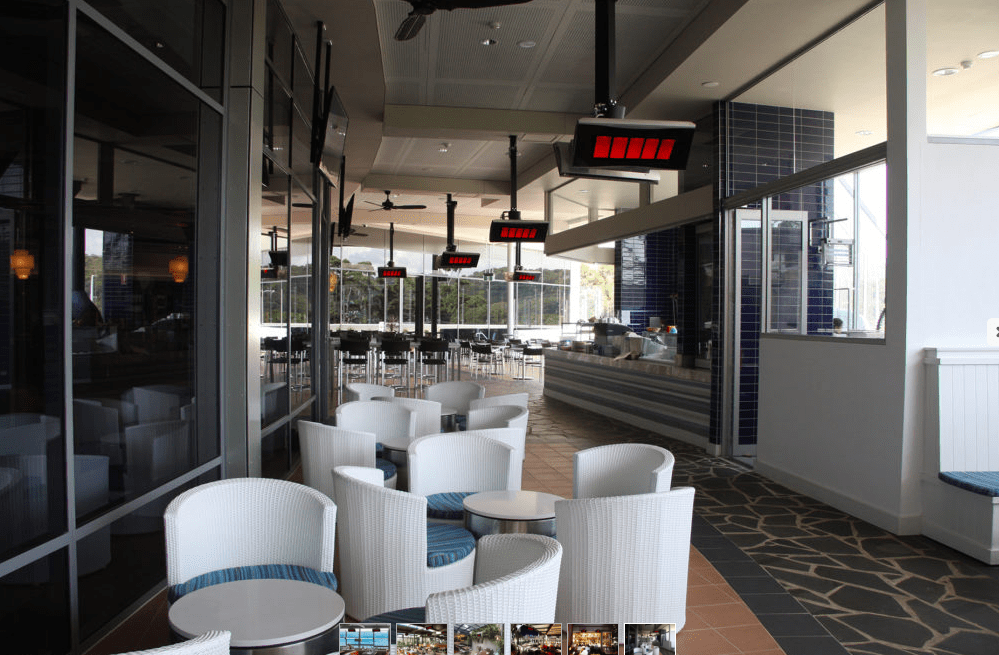

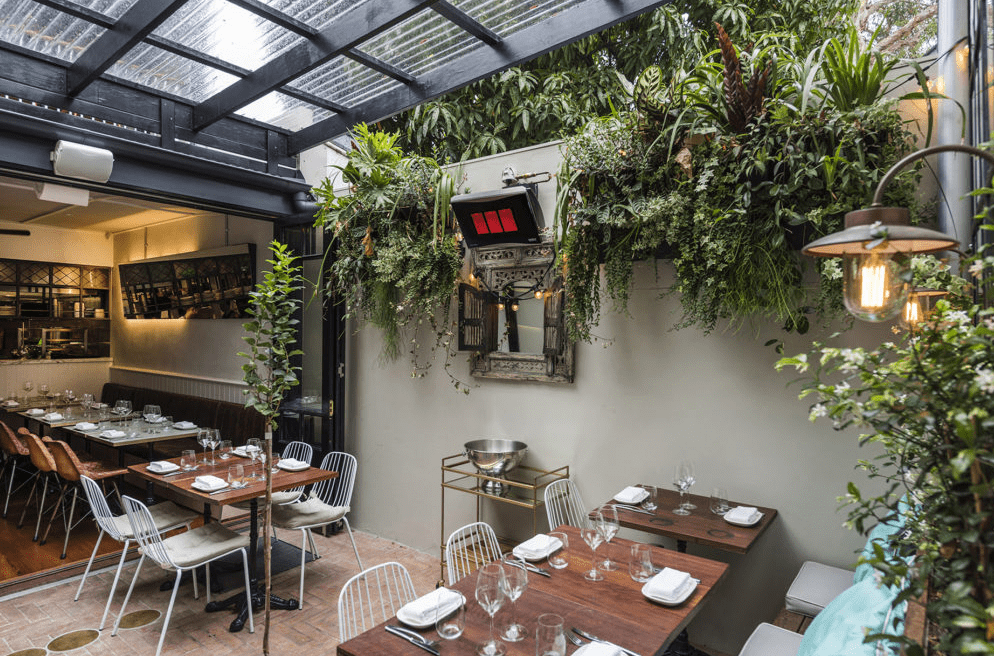

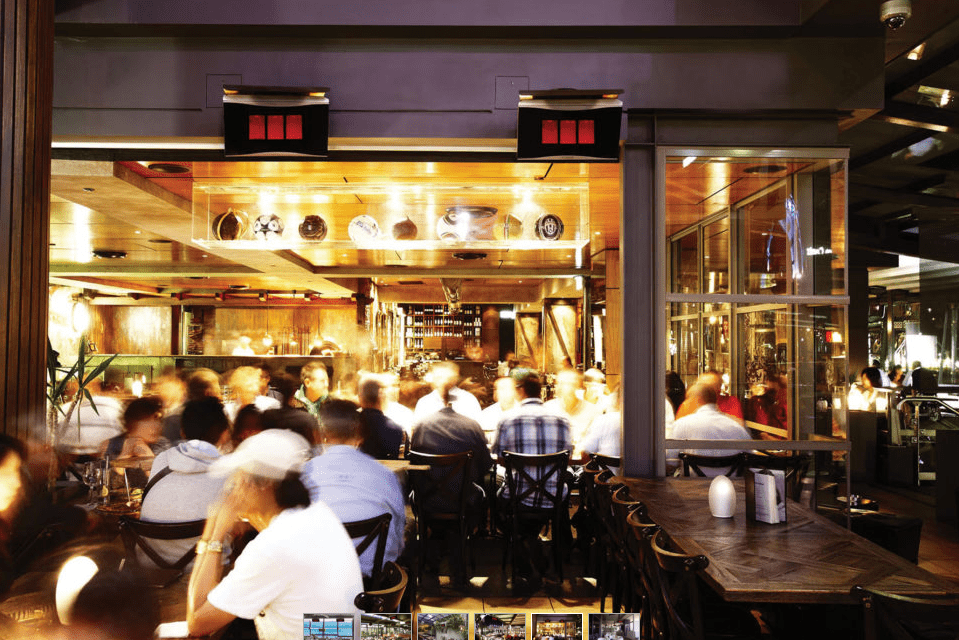

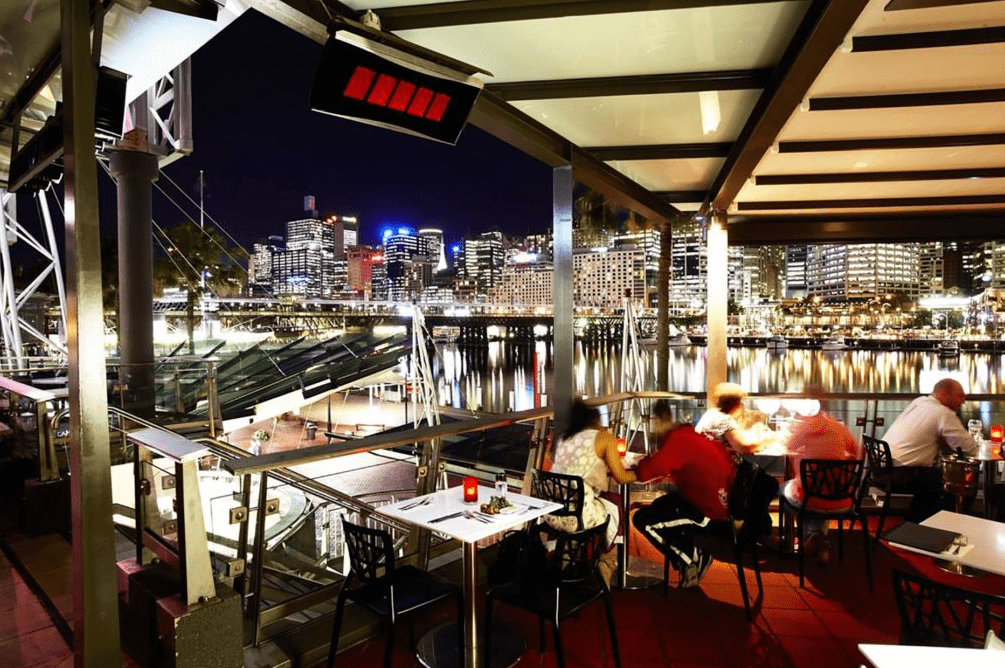

Available in two sizes with a wide array of ceiling and wall mounting options.

Features

Tinted Glass-Ceramic Fascia
Spread heat evenly across a large area while emitting an equally soft,  comforting, red glow.

Environmental Efficiency
Slow-release ceramic burners are supremely efficient and the most environmentally-friendly gas-fired heating method available.

Elegant & Unique Design
Make your heater a feature or have it blend seamlessly into
the background, thanks to a beautiful and elegant design.

Unrivaled Coverage
Project comfort evenly across a wide expanse while reaching deeply into open areas.

Patented Direct Ignition System
Instantaneous ignition, whenever you require it, without the need for a pilot light.

Premium Construction
Exceptional engineering and premium materials provide reliable performance and durability.

Ultimate Wind Resistance
Innovative patented technology ensures reliable function in wind speeds up to 11 mph.

Set and forget
Simple and easy to use, with smart system compatibility and automated re-ignition.

Model 300 Series 500 Series
Part Number LPG1,2 2620130-1 2620140-1
Natural Gas1,2 2620131-1 2620141-1
Heat Output 23,600 BTU 39,800 BTU
Approximate area heated 160FT² 215FT²
Gas connection 1/2” NPT Female 1/2” NPT Female
Rated current 120V/2A 120V/2A
Dimension (WxDxH) 22.1” x 16.6” x 15.9” 29.8” x 16.6” x 15.9”
Min. distance to combustiable materials2 (without heat deflector)2



(with heat deflector)2

Side: 36”(3’)
Above (to ceiling): 36”(3’)
Above (to ceiling):  14”
Weight 45Ib  54Ib




1Must only be installed by a licensed technician. Must complete “Pre-Installation Checklist” before installing

2The temperature will not exceed 14.9°F above  the ambient temperature at specified distances.

Please consult material manufacturer for temperature ratings and suitability. Bromic Heating takes no responsibility for material compliance.
